Oilgear PFBA Hydraulic Pump

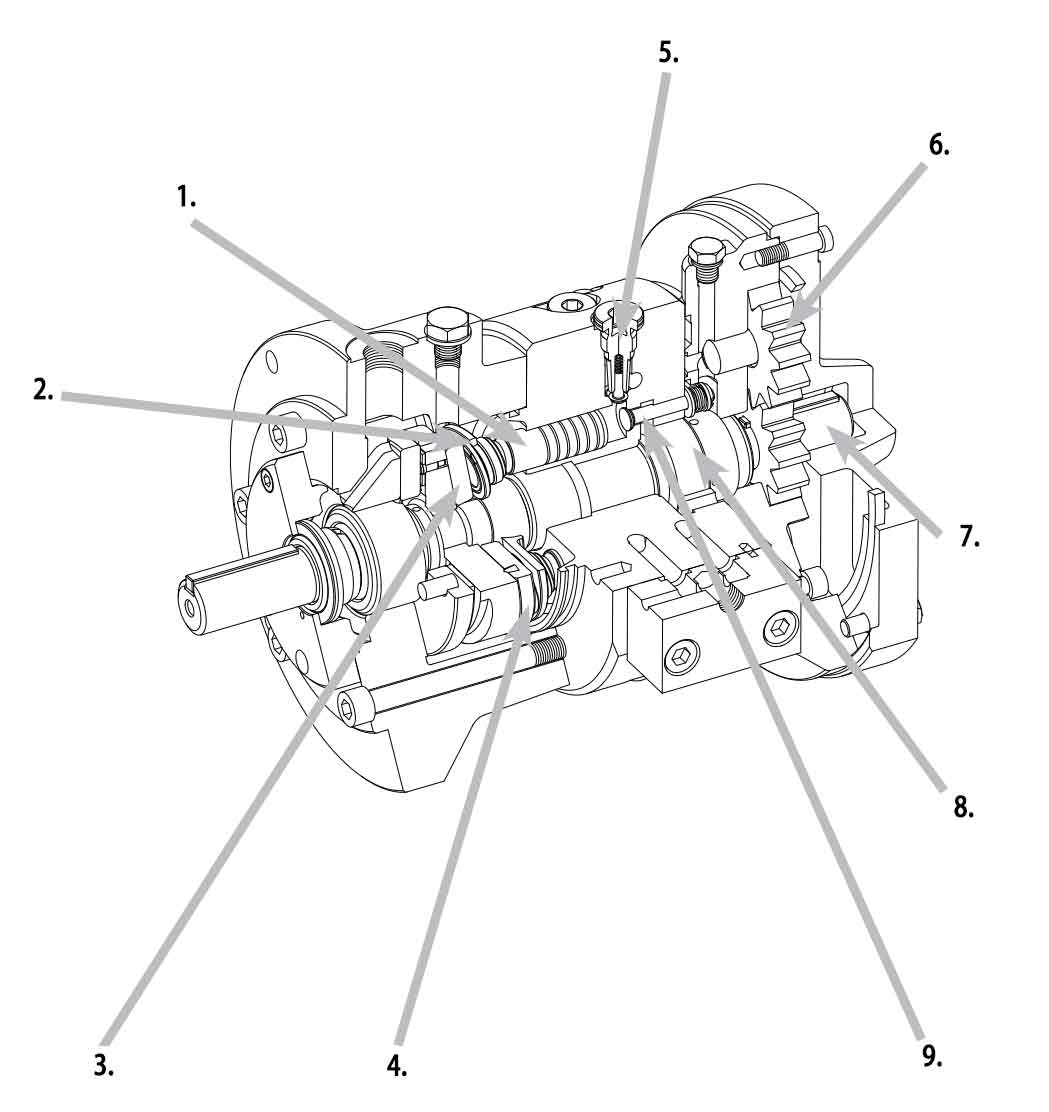

1. Pumping Pistons

Six hardened steel pistons located in a stationary body are not subject to centrifugal force, thus reducing load and wear. The piston load is caused by pumping action only, therefore higher operating speeds are possible.

2. Steel Piston Shoes

Hydrostatically balanced design reduces piston shoe load and provides lubrication for increased life.
Facilitates a high degree of contamination wear resistance.
Permits higher pressure operation with long life.
Allows operation with low viscosity or other special fluids including 95/5. Consult Oilgear for more information.

3. Single Swash Plate

Hardened steel for hard on hard wear resistance.

4. Swashmember with 13° Angle

Results in low piston head loading.
Allows high speed operation.
Design enables pump compatibility to high pressure and high shock loads.
A polymer coated plate is attached to the swashmember to provide a bearing surface for thrust loads.

5. Delivery valve

6. Optional Integral Supercharge Pump

Built-in gear pump supercharges, lubricates and provides case flow for cooling the main pump.
Eliminates need for external supercharge pump.

7. Drive Shaft

A through drive is provided for tandem mounting other equipment.

8. Bearings.

Shaft/swash assembly rotates in a plain bearing at the front end and at the rear.

9. Inlet Valve

Inlet and delivery check valves are positive seated for high volumetric efficiency.
Rugged, high response, lightweight poppet construction assures long life.

These axial piston pumps are used in a wide variety of applications, including die casting and injection molding machines, high pressure test rigs, civil and marine projects, intensifier systems, extrusion presses, forging presses and high pressure forced lubrication systems for long turbines as well as metal forming machines.
The “PFBA” Pump has proved itself successful for use with high water content and low viscosity fluids. If using these fluids, please consult Oilgear for more information.

SINGLE DISCHARGE PFBA

PUMP MODELS	THEORETICAL DISPLACEMENT		RATED CONTINUOUS PRESSURE		DRIVE SPEED (flow and input power at rated pressure)
					1200 rpm				1500 rpm				1800 rpm
					FLOW RATE		INPUT		FLOW RATE		INPUT		FLOW RATE		INPUT
	in.³/rev.	ml/rev.	psi	bar	USgpm	lpm	hp	kw	USgpm	lpm	hp	kw	USgpm	lpm	hp	kw
PFBA-02	0.183	3	14500	1000	0.87	3,3	10.8	8,0	1.09	4,1	13.5	10,1	1.30	4,9	16.2	12,1

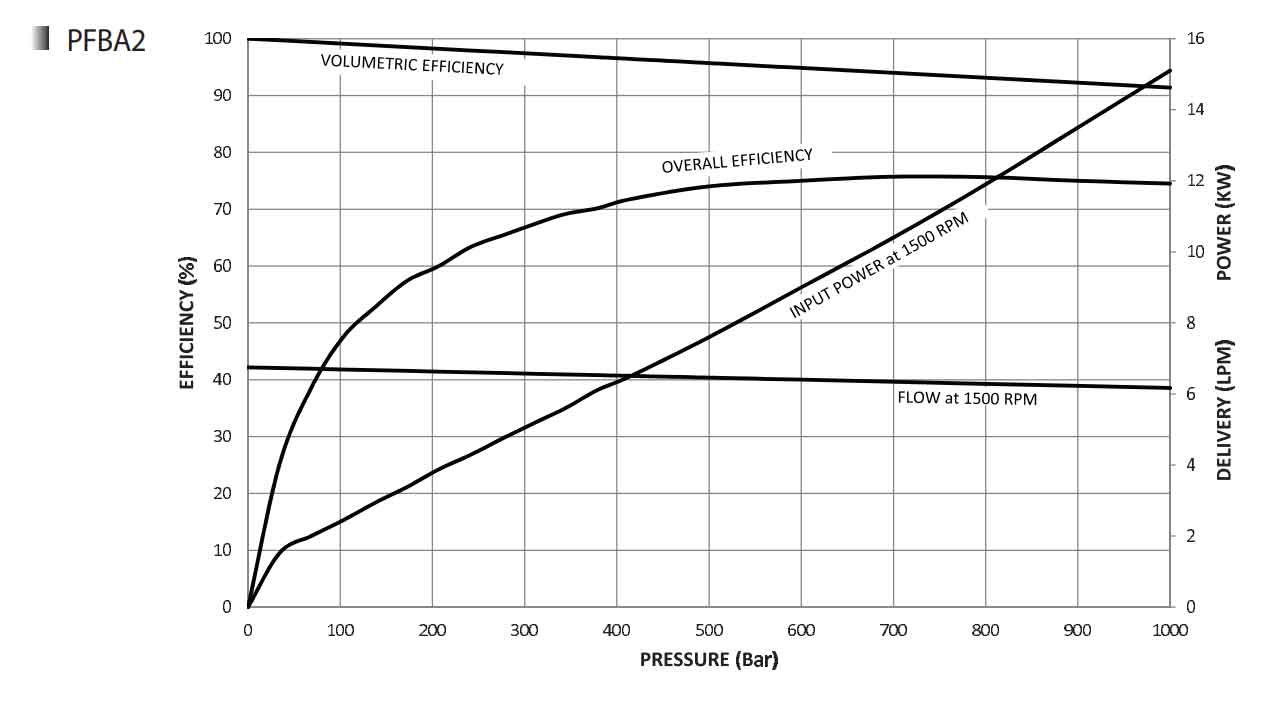

PFBA-2	0.275	4,5			1.30	4,9	16.2	12,1	1.63	6,2	20.2	15,1	1.96	7,4	24.3	18,1
PFBA-2/2	0.549	9			2.61	9,9	32.4	24,2	3.26	12,3	40.5	30,2	3.91	14,8	48.6	36,2

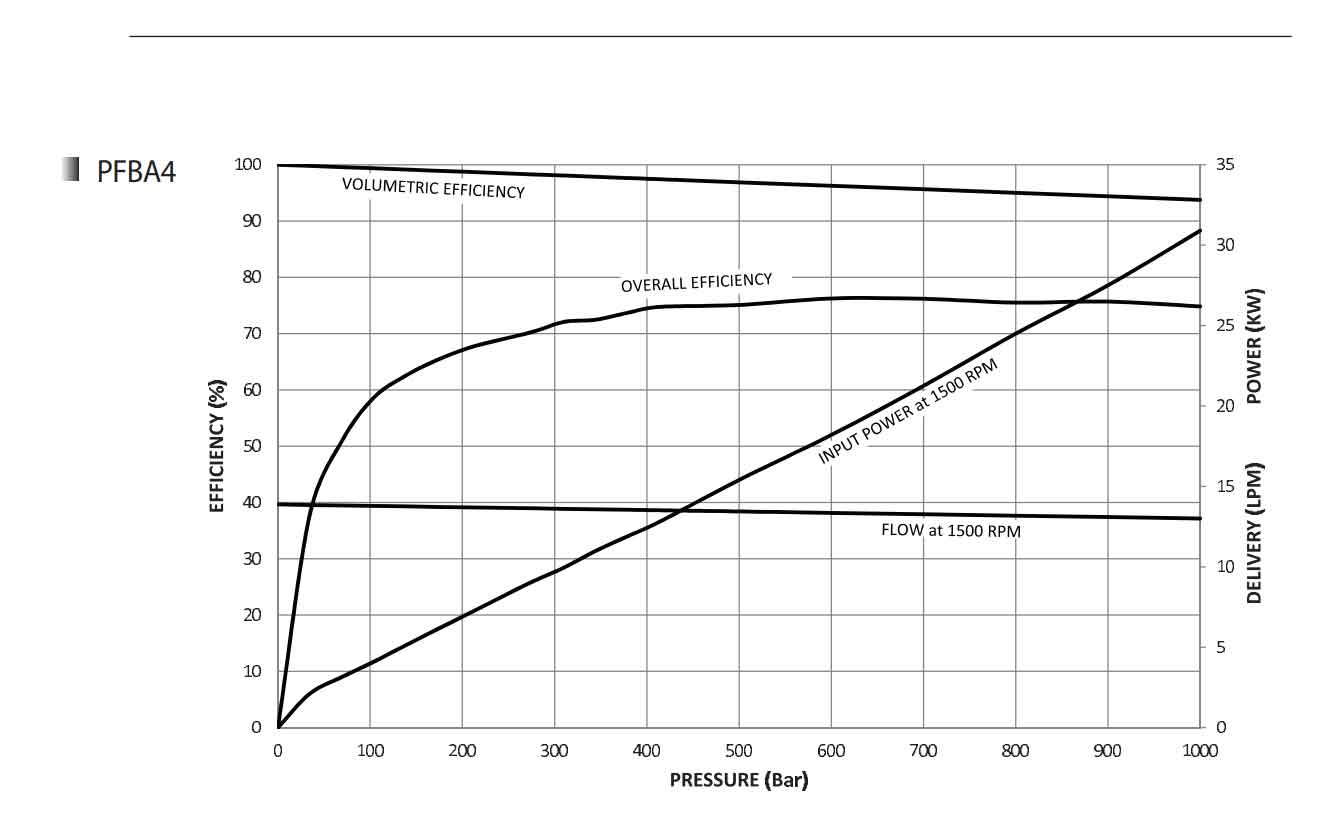

PFBA-4	0.564	9,25			2.75	10,4	33.1	24,7	3.44	13,0	41.4	30,9	4.12	15,6	49.7	37,1

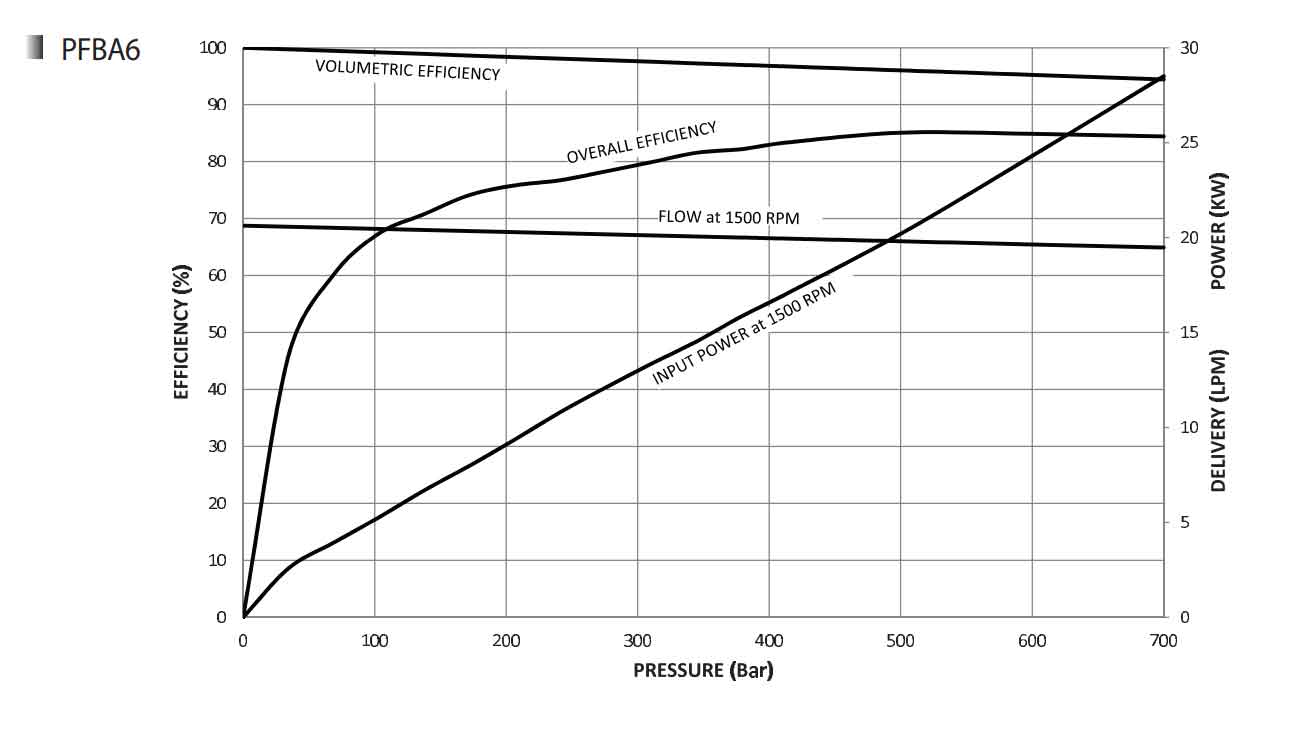

PFBA-6	0.839	13,75	10150	700	4.12	15,6	30.6	22,8	5.15	19,5	38.2	28,5	6.17	23,4	45.9	34,2

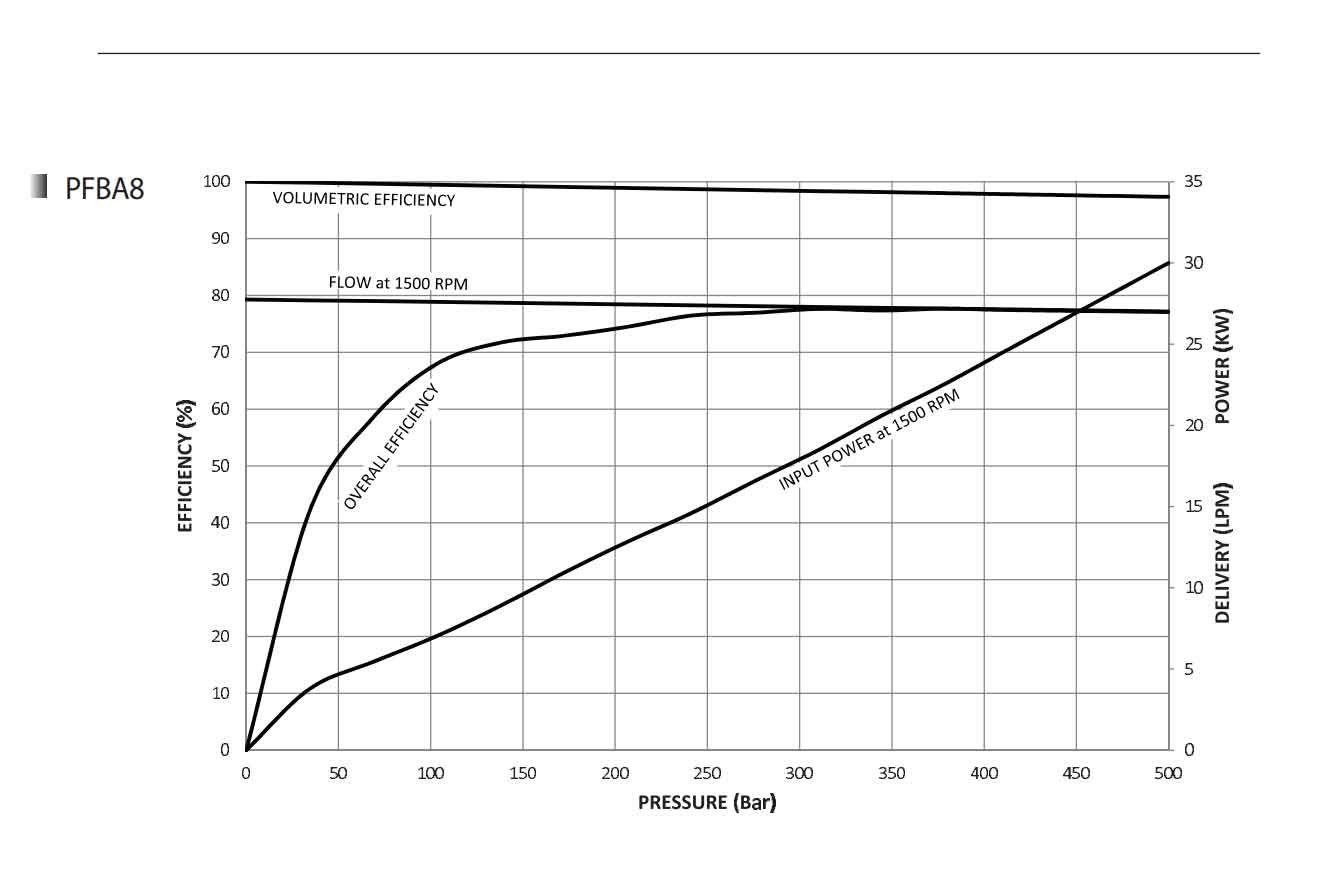

PFBA-8	1.129	18,5	8700	500	5.71	21,6	32.2	24,0	7.14	27,0	40.2	30,0	8.56	32,4	48.3	36,0

MULTIPLE DISCHARGE PFBA

PUMP MODELS	NUMBER OF DISCHARGES	DISCHARGE #	THEORETICAL DISPLACEMENT		RATED DRIVE SPEED
					1200 rpm		1500 rpm		1800 rpm
			in.³/rev.	ml/rev.	USgpm	lpm	USgpm	lpm	USgpm	lpm
PFBA 2/2	2	1 2	0.275 0.275	4,5 4,5	1.30 1.30	4,9 4,9	1.63 1.63	6,2 6,2	1.96 1.96	7,4 7,4
PFBA-6	2	1 2	0.275 0.564	4,5 9,25	1.30 2.75	4,9 10,4	1.63 3.44	6,2 13,0	1.96 4.12	7,4 15,6
PFBA-8	2	1 2	0.564 0.564	9,25 9,25	2.75 2.75	10,4 10,4	3.44 3.44	13,0 13,0	4.12 4.12	15,6 15,6

DIMENSIONS*

PUMP MODELS

L LENGTH

W WIDTH

H HEIGHT

WEIGHT

in.

lb.

PFBA-02

13.6

346

8.3

211

8.3

211

PFBA-2

PFBA 2/2

PFBA-4

PFBA-6

PFBA-8

*All dimensions are approximate. For detailed information consult your factory representative.
