Oilgear PVM Hydraulic Pump
PVM OPEN LOOP PUMPS
– Features And Benefits
Plus the following not shown in the cross section photo
(13) Isolated front shaft bearing
- Enables operation with low viscosity or other special fluids
- Allows side loading
(14) Multiple capacities in each compact frame size
- Permits selection of volume capacity that most closely match your needs while providing maximum control range
- Unitized one-piece nodular iron housing reduces number of potential leak paths
(15) Totally enclosed
- Impervious to high pressure washdown
- Can be operated in hazardous environments with totally enclosed drive motors
(16) Can be easily mounted in any position
- Easy to install
- Dual case drain available for mounting flexibility
(17) Built in purge port
- Aids in purging trapped air from pump during start-up
(18) Designed without gaskets
- All mating surfaces and passages designed with o’ring seals to prevent leakage
Nominal Performance Data with 150-300SSU viscosity fluids
| UNIT SIZE | THEORETICAL MAXIMUM DISPLACEMENT | RATED CONTINUOUS PRESSURE | PEAK PRESSURE | at 1800rpm rated cont. pressure & 14.7 psia inlet conditions | MINIMUM INLET PRESSURE psia (bar) | MAXIMUM SPEED | POWER INPUT at ratedcont. pres.& 1800 rpm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in3/rev | ml/rev | psi | bar | psi | bar | gpm | l/min | 1200RPM | 1500RPM | 1800RPM | RPM | HP | KW | ||
| PVM 011 | 0.66 | 10.8 | 3750 | 258.6 | 4250 | 293.1 | 4.3 | 16.3 | 5.0 (,34) | 5.3 (,37) | 5.6 (,39) | 3600 | 12.8 | 9.5 | |
| PVM 014 | 0.86 | 14.1 | 3750 | 258.6 | 4250 | 293.1 | 5.8 | 22.0 | 5.0(,34) | 5.0(,34) | 5.5(,38) | 3600 | 16.4 | 12.1 | |
| PVM 022 | 0.86 | 14.1 | 3750 | 258.6 | 4250 | 293.1 | 9.5 | 36.0 | 6.6(,46) | 7.6 (,52) | 8.6 (,60) | 3600 | 26.1 | 19.5 | |
| PVM 025 | 1.55 | 25.4 | 3750 | 258.6 | 4250 | 293.1 | 10.1 | 38.2 | 5.0 (,34) | 5.0 (,34) | 6.5 (,45) | 2700 | 28.8 | 21.5 | |
| PVM 034 | 2.06 | 33.8 | 3750 | 258.6 | 4250 | 293.1 | 14.1 | 53.4 | 5.0 (,34) | 5.0 (,34) | 5.7 (,40) | 2700 | 27.7 | 28.1 | |
| PVM 046 | 2.83 | 46.4 | 3750 | 258.6 | 4250 | 293.1 | 19.7 | 74.6 | 5.0 (,34) | 5.0 (,34) | 5.7 (,40) | 2400 | 51.9 | 38.7 | |
| PVM 065 | 4.00 | 65.5 | 3750 | 258.6 | 4250 | 293.1 | 27.9 | 105.6 | 5.0 (,34) | 5.0 (,34) | 6.2 (,43) | 2700 | 71.0 | 52.9 | |
| PVM 075 | 4.61 | 75.5 | 3750 | 258.6 | 4250 | 293.1 | 31.3 | 118.5 | 5.0 (,34) | 5.0 (,34) | 6.5 (,45) | 2700 | 83.8 | 62.5 | |
| PVM 064 | 3.88 | 63.6 | 3750 | 258.6 | 4250 | 293.1 | 26.6 | 100.7 | 6.1 (,42) | 6.2 (,43) | 7.3 (,5.0) | 2450 | 70.2 | 52.4 | |
| PVM 076 | 4.67 | 76.5 | 3750 | 258.6 | 4250 | 293.1 | 32.4 | 122.6 | 6.2 (,43) | 6.3 (,43) | 8.2 (,57) | 2450 | 85.7 | 63.9 | |
| PVM 098 | 6.00 | 98.3 | 3750 | 258.6 | 4250 | 293.1 | 41.2 | 156.0 | 6.7 (,46) | 7.1 (,49) | 8.3 (,57) | 2450 | 85.7 | 63.9 | |
| PVM 130 | 7.94 | 130.2 | 3750 | 258.6 | 4250 | 293.1 | 57.8 | 218.8 | 6.7 (,46) | 7.1 (,49) | 8.7 (,60) | 2450 | 150.8 | 112.5 | |

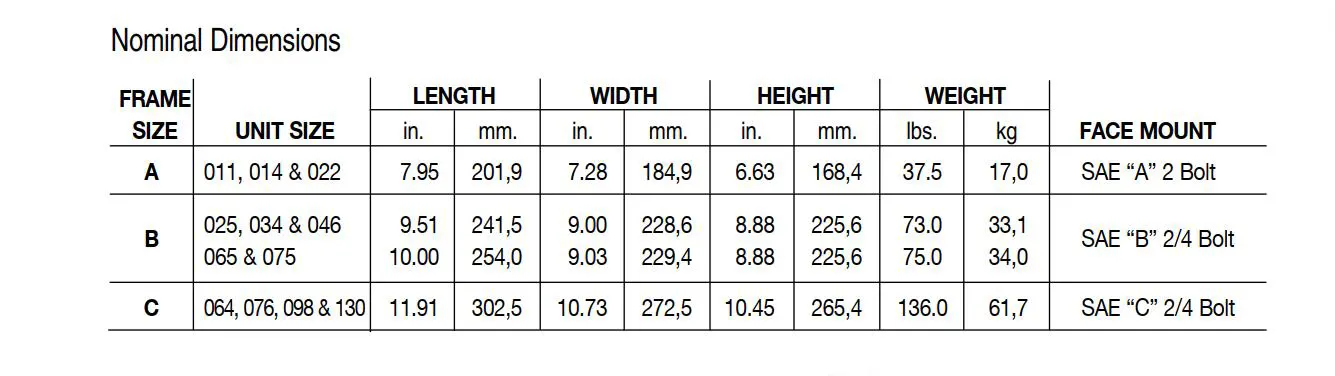

SINGLE PUMP
