Oilgear PVWJ Hydraulic Pump

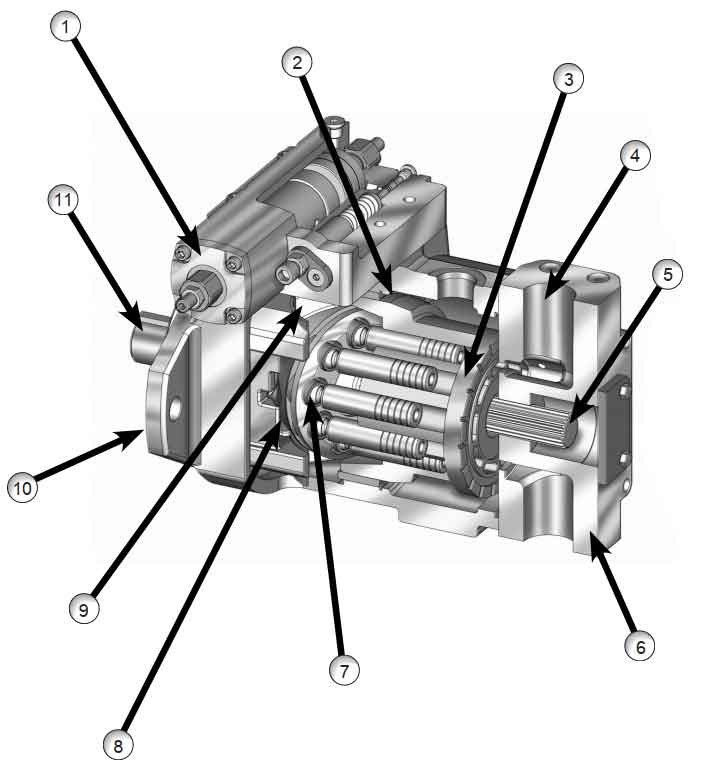

Features and Benefits

1. Multiple control types

Field interchangeability without disconnecting from drive or system piping.

2. Cylinder mounted polymerous journal bearing.

Allows operation with special fluids.
Provides infinite bearing life.
Permits compact design.

3. Hardened cylinder surface running on hardened valve plate (“hard-on-hard”)

Provides greater resistance to contamination.
Provides longer life
Allows operation with special fluids.

4. Quiet valve plate design

Minimizes noise at typical electric motor speeds.
Rear or side port connections available.

5. Thru-shaft availability

Allows for multiple pumpin stallation from a single drive shaft.
Allows pumps to driveauxiliary devices.

6. Three frame sizes

Ten capacity ranges allowing greater flexibility to selectively match pressure and capacity.
Low flow/high pressure tolow pressure/high flow from the same frame sizes.

7. Steel shoes with specially treated facesfor increased fluid retention, running on hardened swashblock surface.

Provides a higher degree of contamination resistance.
Allows higher pressure operation with long life.
Allows operation with water base, low viscosity or other special fluids.
Provides longer life.

8. Special polymerous saddle bearings

Allows running on low viscosity or other special fluids.
Permits consistent control reaction.
Eliminates troublesome yoke bearings.
Provides long life.

9. Patented pressure lubricated swashblock design

Provides high performance for high- pressure.
high-cylinder operation.

10. Sealed front shaft bearing

Allows operation with special fluids.
Permits side loading.

11. SAE keyed or SAE splined shaft

Heavy duty beltdrive shafts.


FRAME SIZE	UNIT SIZE	THEORETICAL MAXIMUM DISPLACEMENT		RATED CONTINUOUS PRESSURE		MAXIMUM PRESSURE		FLOW RATE at 1800 rpm, rated continous pres & 14.7 psia (0.1 bar) inlet condition		MINMUM INLET PRESSURE psia (bar)			MAXIMUM SPEED	POWER INPUT at rated cont pres. & 1800 rpm
		in3/rev	ml/rev	psi	bar	psi	bar	gpm	l/min	2100 rpm	1500 rpm	1800 rpm	rpm	hp	kw
A	011	0.66	10.8	5000	345	5800	400	4.2	15.9	5.4 (,37)	5.7 (,39)	6.1 (,42)	3000	16.3	12.2
	014	0.86	14.1	4000	275	4500	310	5.9	22.4	5.5 (,38)	5.9 (,41)	6.4 (,44)	3000	17.7	13.2
	022	1.35	22.1	3000	210	3500	240	9.5	36.0	5.5 (,38)	6.0 (,41)	7.0 (,48)	3000	20.2	15.1
B	025	1.55	25.4	5000	344	5800	400	10.9	41.3	7.0 (,48)	7.3 (,50)	8.2 (,57)	3000	36.5	27.2
	034	2.06	33.8	3500	240	4000	275	14.7	55.7	7.0 (,48)	7.6 (,52)	8.4 (,58)	3000	35.5	26.5
	046	2.83	46.4	2500	175	3000	210	20.6	78.1	7.2 (,50)	7.9 (,54)	9.0 (,62)	2400	35.0	26.1
C	064	3.88	63.6	5000	345	5800	400	27.4	103.8	7.6 (,59)	8.5 (,59)	9.5 (,66)	2400	95.1	70.9
	076	4.67	76.5	3500	240	4000	275	33.7	127.7	8.0 (,55)	8.6 (,59)	9.6 (,66)	2400	80.4	60.0
	098	6.00	98.3	2500	175	3000	210	43.3	164.1	7.6 (,52)	8.6 (,59)	98 (,68)	2400	74.1	55.3
	130	7.94	130.2	1500	105	2000	140	58.2	220.3	8.0 (,55)	9.3 (,64)	14.5 (1,00)	1800	64.0	48.8

For higher speeds, please contact us. Higher speeds available – consult factory.
These units are designed to run with fluids in the 65 to 2000 SSU range.
Note: Minimum speed 600 rpm.

PUMP COMBINATIONS

Two or more Oilgear axial piston variable delivery pumps can be integrally coupled together and driven from a single shaft.

Pump deliveries can be combined for large volume circuits or deliveries can be used individually. See page 5 for individual pump ratings.

The front pump can be used at full rated output while the rear pumps are governed by the thru-shaft torque listed in the table below.

THRU-SHAFT SIZING/COMPATIBILITY

PISTON PUMP FRAME SIZE	INPUT TORQUE
	PUMP SIZE	RATED PRESSURE		INPUT TORQUE (T_R) @ RATED PRESSURE		PEAK PRESSURE		INPUT TORQUE @ PEAK PRESSURE		ALLOWABLE THRU- SHAFT TORQUE
		psi	bar	in-lb	Nm	psi	bar	in-lb	Nm	in-lb	Nm
A	011 014 022	5000 4000 3000	344,8 275,9 206,9	570.7 612.7 717.8	64,3 70,0 80,8	5800 4500 3500	400,0 310,3 241,4	662.0 689.3 837.4	74,6 77,6 94,3	1290	145.1
B	025 034 046	5000 3500 2500	344,8 241,4 172,4	1306.0 1278.0 1243.0	147,1 143,9 140,0	5800 4000 3000	400,0 275,9 206,9	1515.0 1460.6 1450.2	170,6 165,5 163,3	2250	253.1
C	064 076 098 130	5000 3500 2500 1500	344,8 241,4 172,4 103,4	3263.3 2871.1 2661.0 2100.8	367,5 323,3 299,7 236,6	5800 4000 3000 2000	400,0 275,9 206,9 137,9	3785.3 3281.3 3104.5 2801.1	426,3 369,5 349,6 315,4	6400	720.0

NOTE: Total input torque to the front unit may not exceed the values given in the table.

The torque may be divided between the units in any fashion as long as the total does not exceed the table value.

SINGLE PUMP

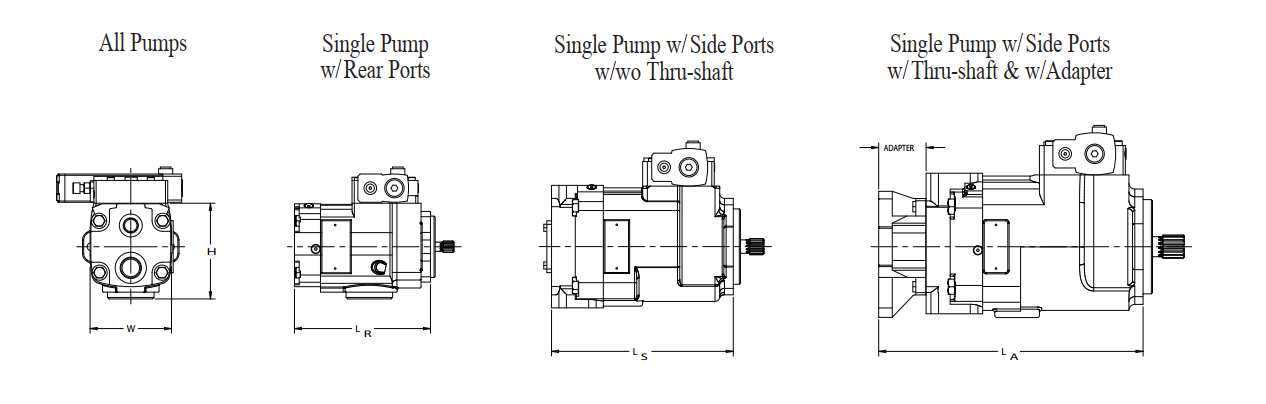

DIMENSIONS and WEIGHTS W/O CONTROLS

FRAME SIZE	PVWJ PUMP SIZE	HEIGHT		WIDTH		LENGTH WEIGHT
		H		W		L_R		L_S		L_A		SINGLE PUMP W/REAR PORTS
		inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	lb	kg
A	011, 014, 022	4.50	114.3	4.32	109.7	7.20	182.9	9.62	244.3	10.94	277.9	32	14.5
B	025, 034, 046	6.11	155.2	5.80	147.3	8.50	215.9	9.63	244.6	12.36	313.9	68	30.9
C	064, 076, 098, 130	7.18	182.4	6.76	171.7	10.44	265.2	11.50	292.1	14.00	355.6	103	46.8

See appropriate data sheet for further details.
All dimensions are approximate. For detailed dimensions, contact your Oilgear representative.

Length Example:
SINGLE PUMP
* With rear ports
PVWJ – 034 – A1UV – RSAY – P – 1NNNN
Size 034 (LR) length = 8.50 inches (215,9 mm)

* With side ports, with or without thru-shaft PVWJ – 034 – A1UV – RDFY – P – 1NNNN
Size 034 (LS) length = 9.63 inches (244,6 mm)
* With side ports, with thru-shaft adapter PVWJ – 034 – A1UV – RDFY – P – 1NNNN
Size 034 (LA) length = 12.36 inches (313,9 mm)

STANDARD AUXILIARY GEAR PUMPS

DIMENSIONS and WEIGHTS

GEAR PUMP SIZE	LENGTH L_G		WEIGHT
	inch	mm	lb	kg
05	4.30	109.2	5.1	2.3
07	4.46	113.3	5.5	2.5
10	4.71	119.6	6.0	2.7
14	5.09	129.3	6.4	2.9
20	5.62	142.7	7.6	3.4

Gear Pumps are Spline Driven.
Add dimension LG to Pump Length (LA shown in table above).
