6. Exhaust System
6. Exhaust pipe G9F72-30201
7. Muffler E27V2-30201
7. Muffler E27Z2-30401
7. Muffler E27V2-30301
7. Muffler E27Z7-30601
7. Muffler G27V2-30601
7. Muffler G27Z2-30601
8. Gasket H97Y2-32001
10. Gasket H25N2-32001
1. MufflerE29V2-30201
1. MufflerE29V2-30501
1. MufflerG29V2-30601
2. Rubber 22252-32241
3. Exhaust pipe G29Z2-30201
4. Gasket H25N2-32001
1. Muffler G2H32-30701
1. Muffler E2H32-30101
1. Muffler G2H32-30601
3. Exhaust pipe G2L32-30201
4. Gasket H25N2-32001
1. Muffler E9B52-30301
1. Muffler E9B52-30201
1. Muffler G9B52-30701
7. Exhaust pipe G2T12-30101
13. Gasket H25N2-32001
1. MufflerG2H32-30501
1. Muffler E2H32-30501
2. Muffler G2H32-30601
3. Exhaust pipe G2E52-30201
12. Gasket H25S2-32001
1. Muffler E9B52-30201
1. Muffler E9B52-30301
1. Muffler G9B52-30701
3. Exhaust pipe G9E52-30301
4. Gasket H25N2-32001
13. Gasket H99Y2-32001
1. Muffler G2H32-30701
1. Muffler G2B62-30201
1. Muffler G2H32-30601
3. Exhaust pipe G2E62-30101
13. Gasket H25N2-32001
1. Muffler G2H32-30701
1. Muffler G2T32-30801
1. MufflerE2H32-30501
1. Muffler E2T32-30101
1. Muffler G2H32-30601
1. Muffler G2T32-30601
2. Gasket HT272-32031
3. Exhaust pipe GT292-30201
4. Gasket H25N2-32001

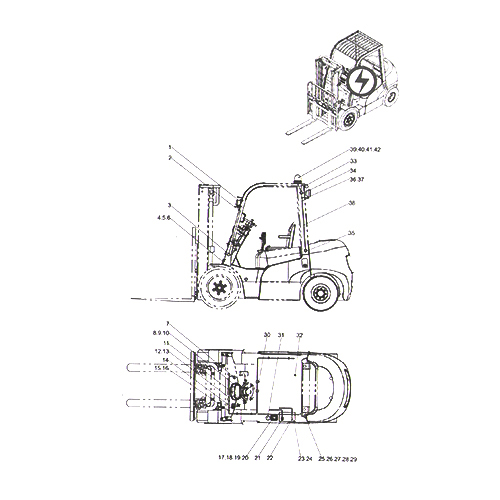

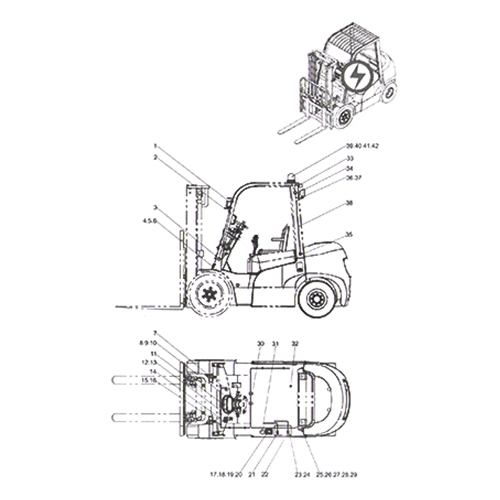

7. Electric system
1. Front combination lamp D08QZHD
4. Horn Z8500-1D124
7. Brake switch Z8740-JK205
8. Start switch Z8710-04110
9. Combination meter G27Z2-40511T
10. Combination meter G27Z2-40511T-W
11. Combination switch GY832-40511
12. Principle diagram G27Z2-40101
13. Frame wiring harness G29Z2-40111
13. Frame wiring harness G2E62-40301
13. Frame wiring harness GT292-40301
14. Hand brake switch A65F2-41201
15. Belt clip Z9260-40200
16. Belt clip H24C2-42131
17. Control box D03HCKJ012
21. Cable(+) A23F2-40420
22. Cable(-) A22A2-40400
23. Fusible link wire A22A2-40900
24. Battery D016-QW-80
25. Back buzzer A61S2-41301
31. Fuel level sensor Z8421-18214
Electric Flame control
D03DXHQ01
36. Head lamp Z8600-120WD
37. Lamp switch D09JK211
38. Wiring harness,overhead guard GF952-40401
39. Caution light XH9-3MJ
40. Caution light H24C2-40491
41. Caution light H24C2-40492
42. Switch,caution light D09JK211J
1. Front combination lamp D08QZHD
4. Horn Z8500-1D124
7. Brake switch Z8740-JK205
8. Start switch Z8710-04110
9. Combination meter G27Z2-40511T
10. Combination meter G27Z2-40511T-W
11. Combination switch GY832-40511
12. Principle diagram G27Z2-40101
13. Frame wiring harness G2L32-40221
13. Frame wiring harness G9F72-40301
13. Frame wiring harness G9E52-40111
14. Hand brake switch A65F2-41201
15. Belt clip Z9260-40200
16. Belt clip H24C2-42131
17. Control box D03HCKJ012
21. Cable(+) 20162-42061G
22. Cable(-) A22A2-40400
23. Fusible link wire A22A2-40900
24. Battery D016-QW-80
25. Back buzzer A61S2-41301
30. Clip 22492-42091G
31. Fuel level sensor Z8421-18214
32. Water temperature sensor Z8411-12703
33. Rear combination lamp G27Z2-40221
36. Head lamp Z8600-120WD
37. Lamp switch D09JK211
38. Wiring harness,overhead guard GF952-40401
39. Caution light XH9-3MJ
40. Caution light H24C2-40491
41. Caution light H24C2-40492
42. Switch,caution light D09JK211J

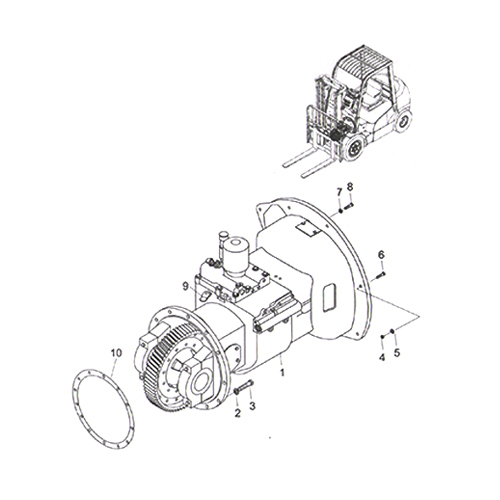

8. Transmission case installation
1. Transmission case H25S3-80311
1. Transmission case H93D2-50201
10. Gasket 24452-52001

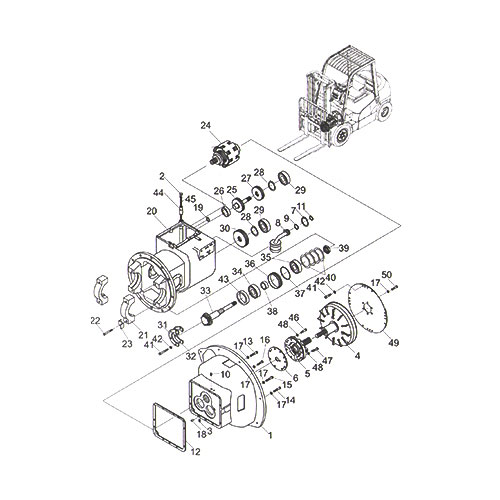

9. Parts of Heli forklift transmission case
1. Housing for Torque converter H25S3-82001
1. Housing for Torque converter 22502-52113G
2. Cup 12163-82232
3. Plug H25S3-84001
4. Torque converter H25S3-20001
4. Torque converter 12163-80301G
5. Charging pump assy 15583-80221
6. Gasket 15583-82201
8. filter 12163-82531
9. O-ring Z6004-03503
11. O-ring Z6004-03503
12. Gasket 11243-82501
19. O-ring Z6004-01502
20. case, transmission 120M3-82011
21. Cap,bearing 14453-22031
24. hydraulic clutch 14883-80201
25. Shaft,idler 12163-42201
26. Bearing 6206-2RS
27. Gear,kdler 12163-4221
28. Bearing Z-6207
30. Gear,output 12163-42231
31. Plate,bearing support 12163-82151
32. Shim 12163-82571
32. 12163-82581
32. 12163-82591
33. Shaft,output 14463-42001
34. Bearing Z-32208
35. Bearing Z-30208
36. Retainer,oil seal 12163-82121
37. O-ring Z6003-08003
38. oil Seal 12163-82131
40. Shim12163-82501
40. Shim 12163-82511
40. Shim 12163-82551
43. Collar 12163-82191
44. Pipe oil fill 12163-82221
45. Gasket 12163-82421
48. Gasket 12163-82561
49. Plate 13683-82021
49. Plate 13063-82022
1. cover, solenoid valve 116H3-82301
2. Solenoid valve 34E-10BY-12
6. Inching value assy 15583-80202
7. Shim 15583-82081
9. Cover, Torque converter 15583-83611
12. Nipple 12163-82311
13. oil filter 12163-82301
14. Piston 12163-82321
15. Spring 12163-82331
17. Cup 12163-82341
18. Gasket 12163-82421
21. hydraulic control valve H25S3-80601
22. Gasket 15583-82481
27 Gasket 11243-82531A
28. O-ring Z6003-00901
10. Hydraulic clutch
1. Shift,input 11243-80211
2. Gear,revease 11243-82061
3. Gear,forward 11243-82051
4. Plate,end 11243-82221
5. Spring,return 11243-82081
6. Seat,spring 11243-82091
7. Ring,thrust 11243-82101
8. Ring,thrust 11243-82111
9. Piston 11243-82041
10. Plug 11243-82121
11. Ball,stee lZ1505-G0030
12. friction Plate 11243-82141
13. Plate,separator 11243-82151
14. Ring,seal 11243-82161
15. Ring,seal 11243-82171
16. O-ring Z6003-04004
17. Snap,ring 11243-82181
18. Bearing Z-6206-2RS
19. needle bearing 11243-82201
20. Snap,ring B6150-00040
11. Differential assy
1. Case,cross L.H 14453-52032
4. Cover,bearing12003-22051
5. Gear,sideH24C3-52001
6. Spacer 12003-22041
8. Shaft 14453-52101A
9. Gear,pinion 16113-52112
10. Case,cross R.H 14453-52022
11. Gear,ring 14453-52011
13. Washer,lock 14453-52061
16. Washer,thrust 16113-52121
18. O-ring Z6004-07503
19. Shim15413-22101
20. Shim15413-22091
21. Shim 15413-22081
22. BearingZ-213
23. Shaft,final pinion gear 14453-22011
24. Gear,spiral vevel 14453-22021
25. Bearing 12003-43011

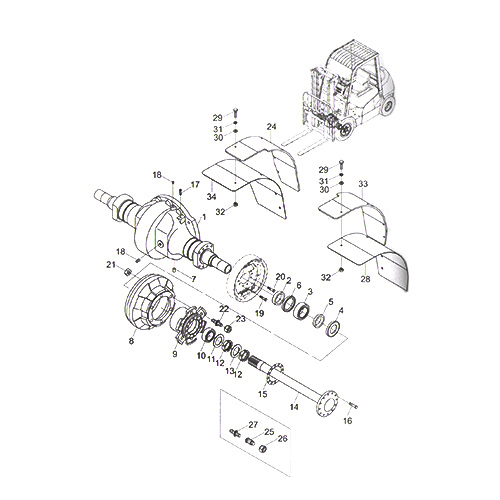

12. Drive axle assy
1. Axle housing A22A3-02041
1. Axle housing A22J3-02021
1. Axle housing A01A3-00202
2. Retainer,oil seal 24453-02121G
3. Oil seal Z6311-10014
4. Retainer 22493-00030G
5. Washer 22493-00020G
6. Bearing Z-30214
8. Brake Drum 22673-02031
8. Brake Drum 22673-02031G2
8. Brake Drum 24453-02011
9. Front wheel hub A22A3-02011
9. Front wheel hub A22A3-02071
9. Front wheel hub 24453-02031G
10. oil seal assy 23453-02071
11. Packing 23453-02091
14. differential shaft H24C3-02001
14. differential shaft H24N3-02001
23. Nut 24354-32311
23. Nut 23913-02041
24. Fender R.H G2T33-03011
24. Fender R.H G3H33-03011
25. Nut,hub 24463-00050G2
26. Nut,hub 24463-00060G2
27. Bolt,hub 25303-02102
27. Bolt,hub 24353-72001G2
28. Fender L.H G2H33-02021
28. Fender L.H G3H33-02021
33. Fender L.H G2T33-03021
33. Fender L.H G2H33-03021
34. Fender R.H G3H33-02011
13. Front wheel (Single tire)
1. Rim outside 5.00-12DT 23454-42091G
2. Rim INside 5.00-12DT 23454-42021G
3. Nut B4123-00016
4. Washer,lock B5050-00016
5. Bolt 23454-42101G
6. Tyre 7.00-12-12PR Z3004-70012
6. Tyre 7.00-12 Z3300-70012
6. Tyre 7.00-12 Z3300-70012B
1. Tyre 28X9-15 Z3300-90015
1. Tyre 28X9-15-14PR Z3105-90015
2. Wheel rim G3H34-40101
1. Tyre 28*9-15-12PR Z3104-90015
1. Tyre 28*9-15 Z3300-90015
1. Tyre 28*9-15-12 Z3300-90015B
1. Tyre 28*9-15-14PR Z3105-90015
1. Wheel rim assy (include 1,2) 24454-40222G
2. Wheel rim (7.00T-15) 24439-44032G
3. Snap ring (7.00T-15) 24454-42002G

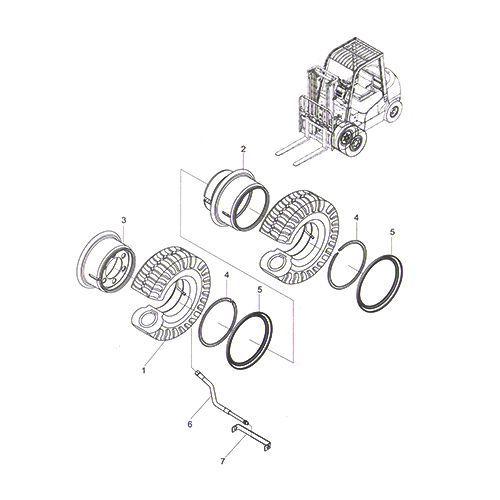

14. Front wheel (Double tire)
1. Tyre 7.00-12-12PR Z3004-70012
1. Tyre 7.00-12 Z3300-70012
1.Tyre 7.00-12 Z3300-70012B
1. Wheel rim ass’y 22493-02001G
1. Wheel rim ass’y 22493-01000G2
2. Wheel rim 22493-02100G2
3. Wheel rim 22493-01100G2
4. Lock ring 22493-01010G2
5. Snap ring 22493-01020G2
6. Pipe 25783-02240
7. Bracket 24493-04000G
1. 28X9-15-12PR Tyre Z3104-90015
1. Tyre 28X9-15 Z3300-90015
1. Tyre Z3300-90015B
1. Wheel rim ass’y 24454-40222G
1. Wheel rim ass’y 54456-80221G
2. (7.00T-15) Wheel rim 24439-44032G
3. (7.00T-15) Wheel rim 24463-01000G
4. (7.00T-15) Lock ring 24454-42002G
5. Snap ring 25783-02240
6. Pipe 24493-04000G
